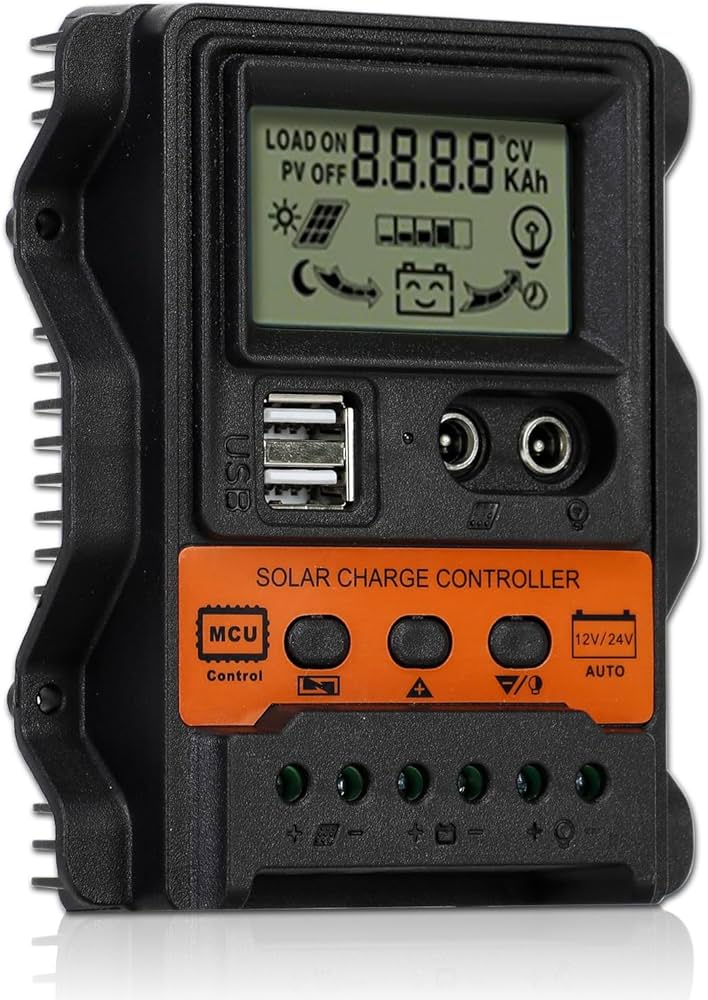

A PWM (Pulse Width Modulation) Solar Charge Controller is a vital component in solar power systems, primarily used to regulate the voltage and current coming from the solar panels going to the battery and the load. This device helps protect batteries from overcharging and ensures the longevity and efficiency of the solar power system. It's especially suited for small to medium-sized solar applications due to its cost-effectiveness compared to more advanced MPPT controllers.
Key Features:
-
Voltage Regulation: Effectively manages the charge voltage to batteries, preventing overcharging which can reduce battery lifespan.
-
Load Control: Many models come with load control options, allowing direct connection and disconnection of loads based on battery voltage.
-
Simple Technology: Utilizes PWM technology, which is simpler and generally less expensive than MPPT (Maximum Power Point Tracking) technologies, making it ideal for smaller setups.
-
Efficiency: While not as high in efficiency as MPPT controllers, PWM controllers are effective in maintaining battery health and providing energy to connected loads.
-
Compatibility: Works well with a variety of battery types including lead-acid, gel, and AGM. Some models are also adjustable to work with newer lithium batteries.
Technical Specifications:
-
Charge Control: PWM-based charging typically maintains the battery at a safe charging voltage, reducing the power applied as the battery reaches full charge to minimize stress.
-
Rated Voltage: Commonly available in 12V and 24V configurations, with some units capable of auto-detecting the system voltage.
-
Current Ratings: Available in various sizes from 5A to 60A to accommodate different solar panel outputs and system sizes.
-
User Interface: Basic models might only have LED indicators, while more advanced models may feature LCD displays showing system status and settings.
Ideal Use Cases:
-
Small Home Solar Systems: Perfect for small, residential solar setups where cost-effectiveness is a priority over maximizing energy harvest.
-
Remote Lighting: Ideal for powering remote lighting installations where simplicity and reliability are more critical than efficiency.
-
RVs and Marine Applications: Used in RVs and boats for managing solar panels installed to charge onboard battery systems.
-
Off-Grid Solar Projects: Suitable for off-grid solar applications such as cabins or remote surveillance systems.
