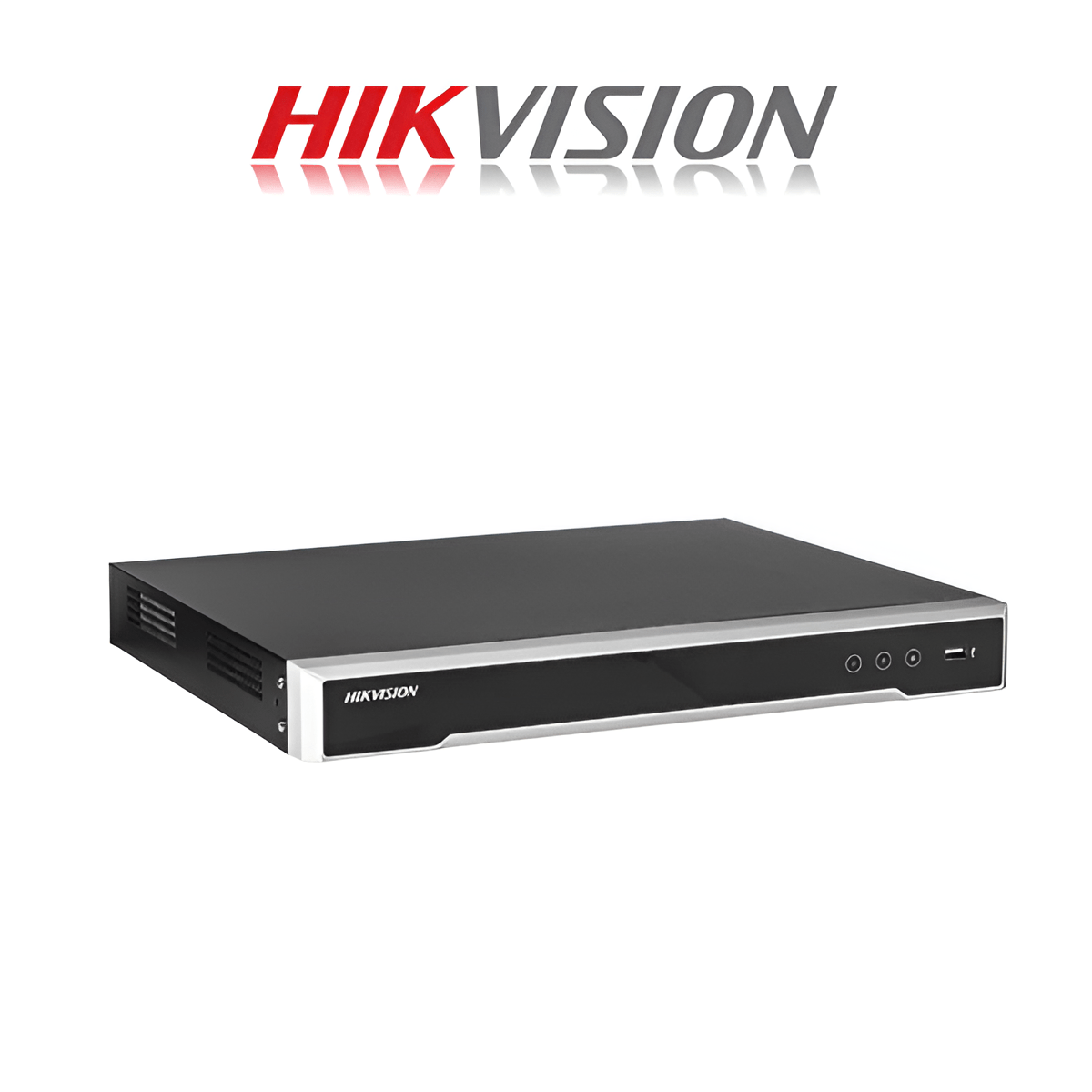

Product Description
KEY FEATURES
- Up to 16 channel IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 4K high-definition live view, storage and playback
- Up to 4-ch @ 1080p decoding capacity
- Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 2 HDDs for continuous video recording
- Compatible with third-party network cameras
- Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
Technical Specifications
VIDEO & INPUT | |
IP Video Input | 16-ch,Up to 8 MP resolution |
Video Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Incoming/Outgoing Bandwidth | 80 Mbps,160 Mbps |
HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA Output | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
Two-Way Audio Input | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
DECODING | |
Decoding Format | H.265/H.265+/H.264/H.264+/MPEG4 |
Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous Playback | 16-ch |
Capability | 1-ch @ 8 MP / 4-ch @ 1080p |
NETWORK | |
Network Protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
POE INTERFACE | |
Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
Power | ≤ 150W |
Supported Standard | IEEE 802.3 af/at |
HARD DISK | |
SATA | 2 SATA interfaces |
Capacity | Up to 6TB capacity for each disk |
EXTERNAL INTERFACE | |
USB Interface | 2 × USB 2.0 |
GENERAL | |
Operating Conditions | -10 to +55º C (+14 to +131º F) |
Power Supply | 100 to 240 VAC,≤ 280W |
Operating Humidity | 10 to 90 % |
Weights (without HDD) | ≤ 2.6 kg (5.7 lb) |
Consumption (without HDD) | ≤ 15 W (without enabling PoE) |
Dimensions (W x D x H) | 385 × 315 × 52 mm (15.2"× 12.4" × 2.0") |
Chassis | 1U chassis |
