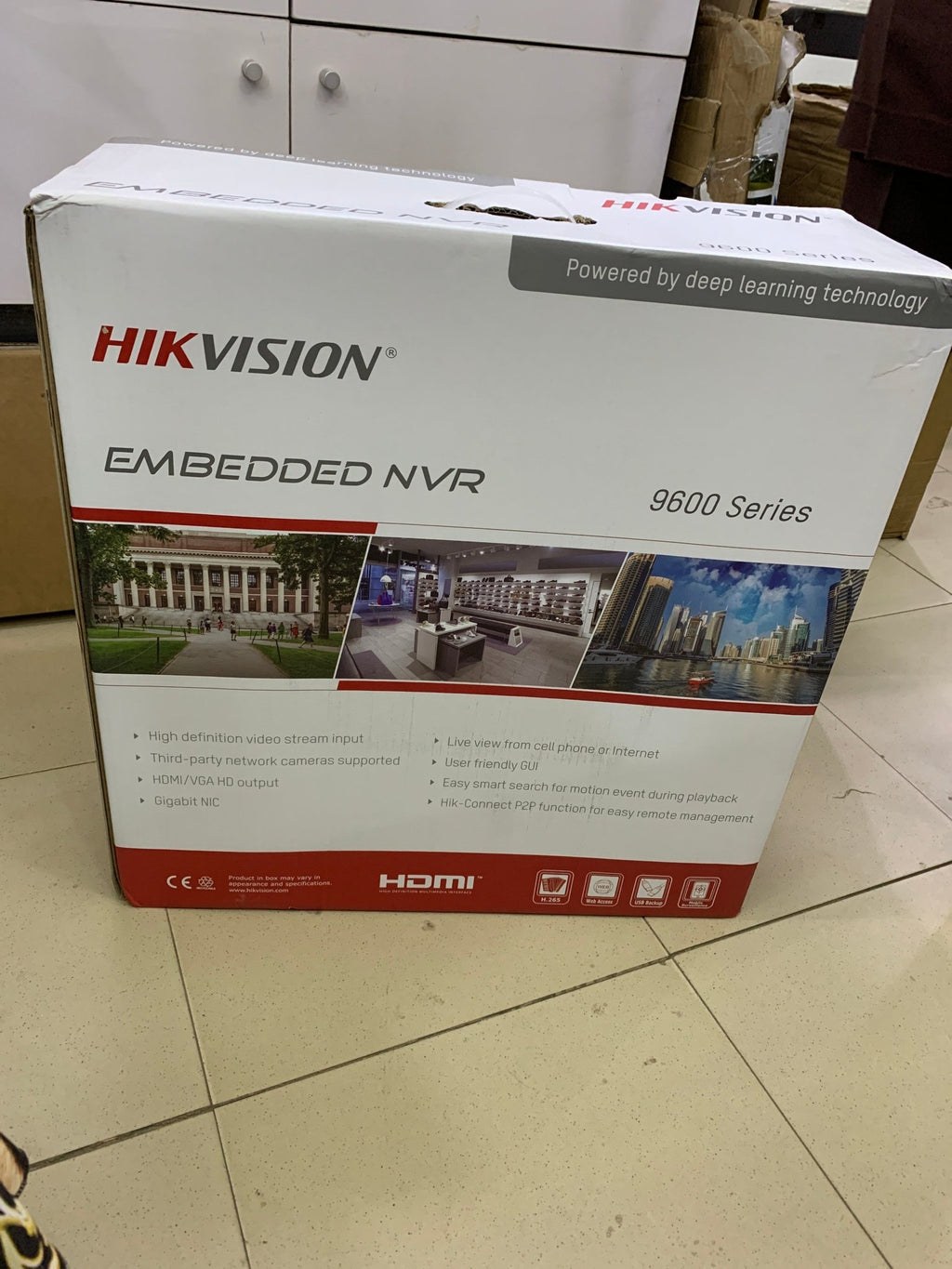

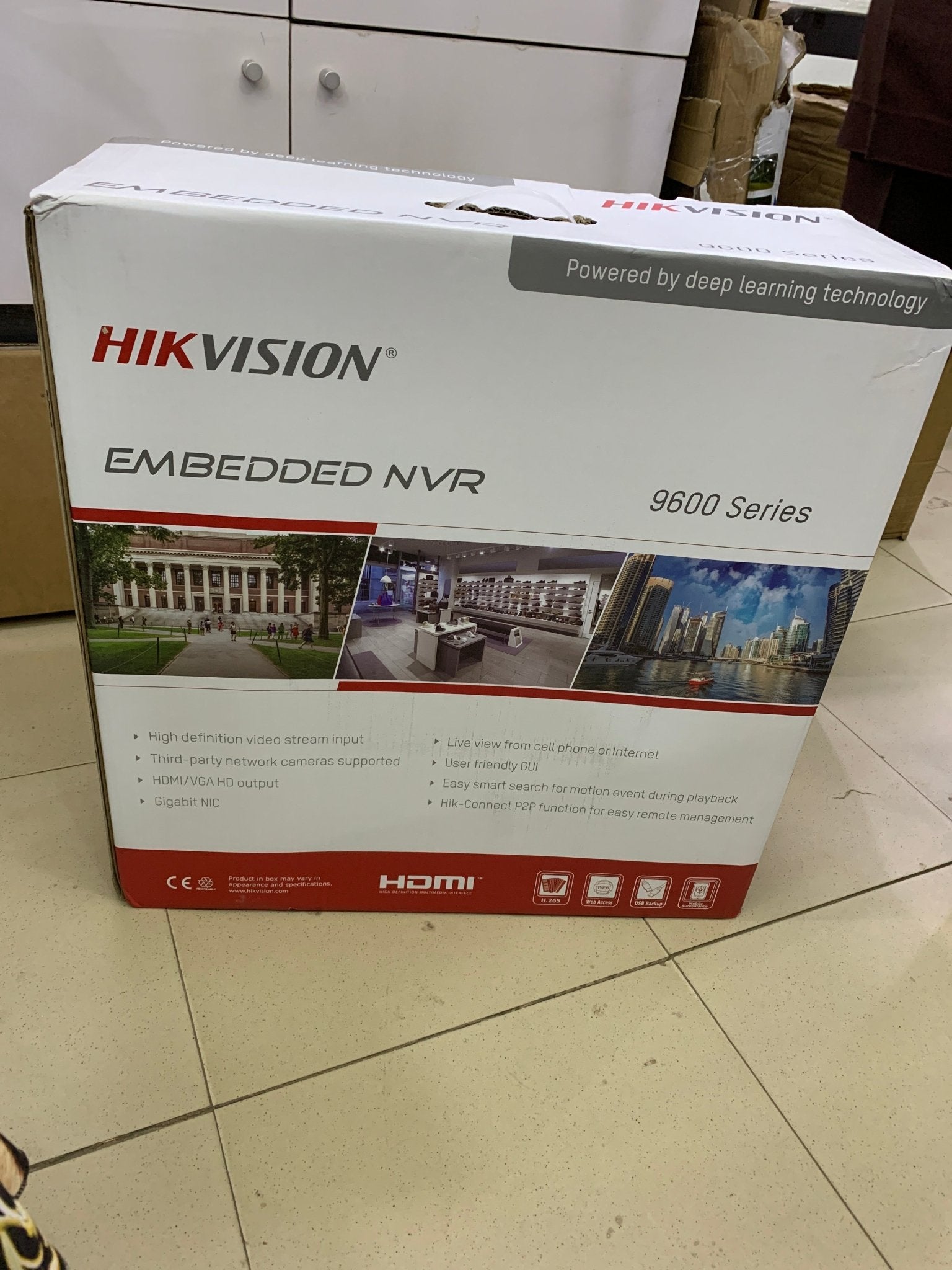

The HIKVISION DS-9632NXI-I8/S is a powerful 32-channel network video recorder (NVR) designed for high-performance, large-scale surveillance systems. Part of Hikvision’s DeepinMind series, this NVR integrates advanced AI capabilities such as facial recognition, false alarm filtering, and deep learning-based analytics. It supports up to 32 IP cameras and offers reliable storage, smart playback, and seamless integration for enterprise-grade security deployments.

Key Features:

• Supports up to 32 IP video inputs

• Deep learning-based facial recognition and perimeter protection

• Smart search, playback, and backup for efficient video review

• 4K resolution recording and HDMI/VGA output

• Up to 320 Mbps incoming bandwidth

• 8 SATA interfaces for up to 80TB of storage (HDDs not included)

• RAID 0/1/5/6/10 support for data protection

• Dual gigabit LAN ports for network redundancy

• Alarm I/O, audio I/O, and USB 3.0 ports for peripheral connectivity

• Smart features: line crossing, intrusion detection, object removal detection

Technical Specifications:

• Model: DS-9632NXI-I8/S

• Video Inputs: 32 IP channels

• Max Resolution: Up to 12MP per channel

• Decoding Capability: Up to 4-ch at 4K or 16-ch at 1080p

• Storage: 8 SATA interfaces, max 10TB per HDD (up to 80TB total)

• Network Throughput: 320 Mbps (incoming) / 256 Mbps (outgoing)

• HDMI/VGA Output: 2 HDMI, 2 VGA (up to 4K)

• AI Functions: Facial recognition, behavior analysis, metadata search

• Audio I/O: 1 input, 1 output

• Alarm I/O: 16 inputs, 4 outputs

• USB Ports: 2×USB 2.0, 1×USB 3.0

• Power Supply: 100 to 240 VAC

• Dimensions: 445 × 470 × 146 mm

• Weight: Approx. 9.6 kg (without HDDs)

Ideal Use Cases:

• Large business premises and commercial buildings

• Government and public sector surveillance

• Campuses, transportation hubs, and stadiums

• Banking, retail chains, and critical infrastructure

• Any environment requiring intelligent, multi-channel video monitoring
